Extending Lens
Extending Lens
Every BoxLang module has its own class loader, so a module cannot implement Java interfaces from inside bx-lens. Lens therefore uses a data-first contract. You declare a panel and fill it with data. Lens renders it with a built-in renderer, so you ship no JavaScript.
This is the only extension tier in v1. Java collectors and custom UI are planned.
Interception points
Lens registers these points. Your code only listens.
| Point | When | Payload |
|---|---|---|
onLensRegister | At Lens activation, and again after all modules activate | data.registry.panel( id, label, icon, order, renderer ) |
onLensRequestStart | Per request, after the request object exists | context, requestId |
onLensCollect | Per request, before render | data.lens.panel( id ) handle to add data, and data.requestId |
onLensRequestFinish | Per request, after it is stored | requestId, summary |

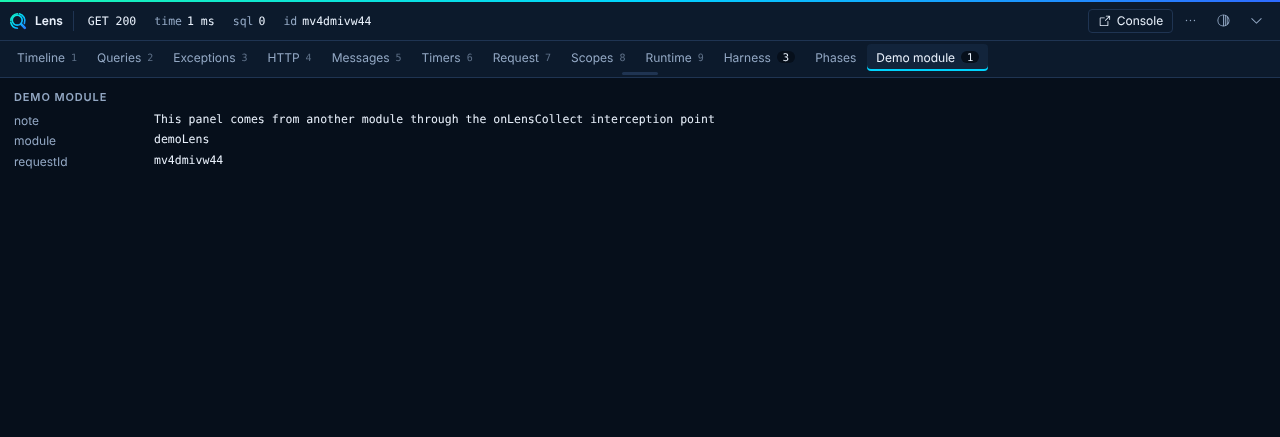

From a module
Declare the panel once, then fill it for each request. The harness ships a working example in harness/home/modules/demoLens.
Register an interceptor in your module:
function configure() {
settings = {};
interceptors = [
{ class : "interceptors.DemoLens", name : "DemoLens@demoLens", properties : {} }
];
}
Then write the interceptor:
class {
function onLensRegister( data ) {
data.registry.panel( "demo", "Demo module", "bolt", 110, "kv" );
}
function onLensCollect( data ) {
data.lens.panel( "demo" )
.kv( {
module : "demoLens",
requestId : data.requestId,
note : "This panel comes from another module"
} )
.badge( 1, "none" );
}
}

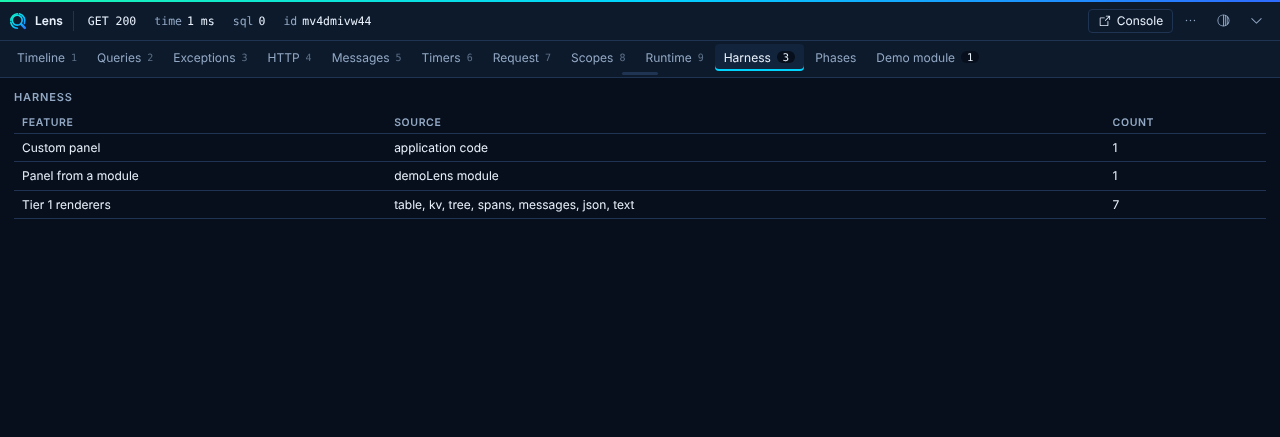

From app code
You can build a panel without a module. Call lensPanel anywhere in a request.
lensPanel( "harness", "Harness", "table" )
.columns( [ "Feature", "Source", "Count" ] )
.rows( [
[ "Custom panel", "application code", 1 ],
[ "Panel from a module", "demoLens module", 1 ]
] )
.badge( 2, "none" )
.order( 95 );
See harness/app/extend.bxm for the full page.
Renderers
| Renderer | Builder method | Use it for |
|---|---|---|
table | columns( [...] ), rows( [...] ) | Rows and columns. A row is an array, or a struct keyed by column title. |
kv | kv( struct ) | Key and value pairs. |
tree | tree( nodes ) | Nested data. Each node has label, optional ms and optional children. |
spans | spans( [...] ) | Timed items. These feed the Timeline. |
messages | messages( [...] ) | Log style lines. Each has level, text and optional ms. |
json | json( value ) | Raw structured data. |
text | text( value ) | Plain text. |
Spans
A spans panel supplies a label, a start, a duration and a type for each item. Lens draws them in the Timeline with the custom type.
lensPanel( "phases", "Phases" )
.spans( [
{ label : "warm up", start : 0.5, dur : 1.5, type : "custom" },
{ label : "render", start : 2.5, dur : 2, type : "custom" }
] );
Issues
A panel can add issues. They show among the issues in the console request detail. The bar does not show issues.
lensPanel( "orm", "ORM" )
.issue( "warn", "Slow flush", "Flushing Order took 31 ms", "/app/models/Order.bx", 88 );
The arguments are severity, title, detail, file, line.
Safety
Module and app data goes through the same redaction, caps and escaping as built-in collectors. The UI always shows text as text. Panels cannot ship HTML or script.
