Issues
Issues

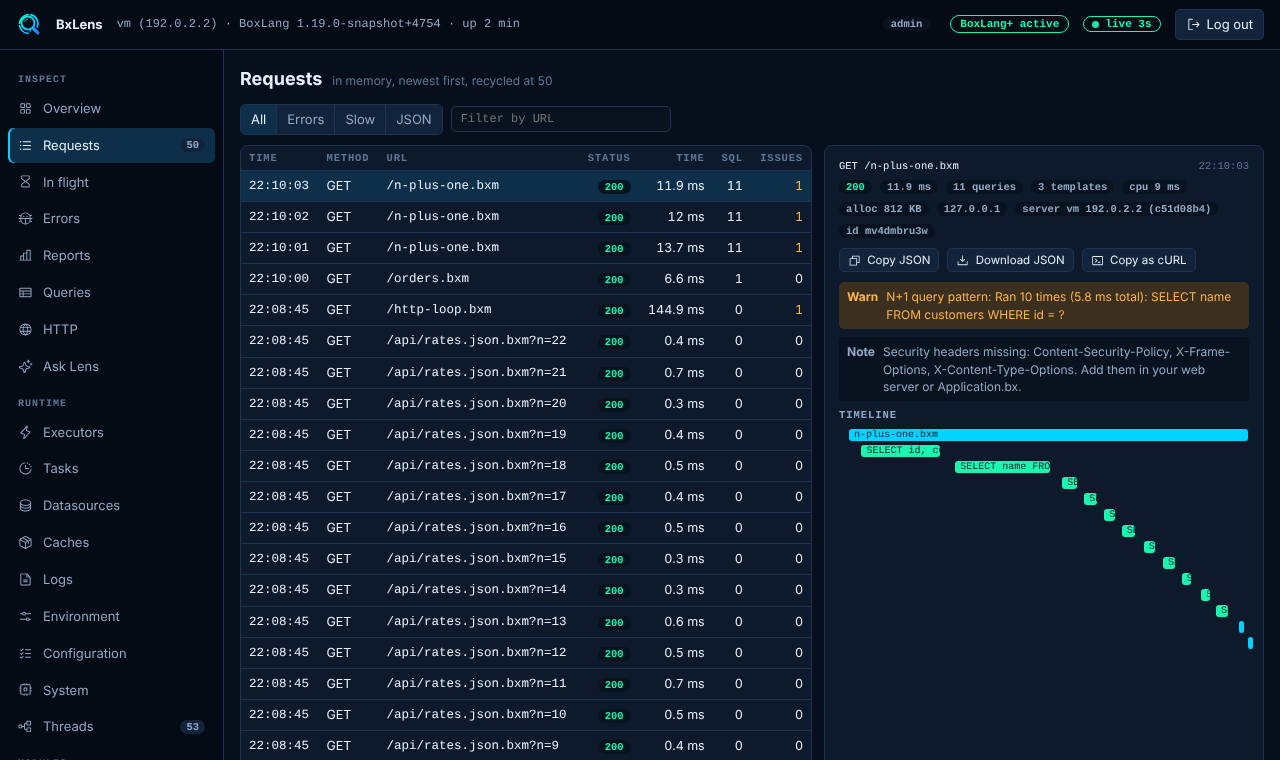

The console request detail lists everything suspicious about a request, ranked by severity. The bar does not: it only shows what happened. Issues are found when the console opens the request (once, then kept), so a bar only installation never runs the analysis.
An unfinished request (see Core events) gets the critical issue Request never finished.
Sources
| Source | Trigger |
|---|---|
| N+1 | The same SQL with placeholders run thresholds.nPlusOneMin times (default 3) or more. |
| Slow query | Warn above thresholds.slowQueryMs, critical at 4 times that. |
| Slow template or function | Self time above thresholds.slowTemplateMs. The first run of a template includes compilation. |
| Slow request | Longer than thresholds.slowRequestMs. Names the template and line when a sample was taken. |
| Security notes | Missing security headers or cookie flags on an HTML response. See below. |
| Request status | The request itself returns 4xx (warn) or 5xx (critical). |
| Outgoing HTTP | A 4xx response warns. A 5xx response or transport failure is critical. |
| Exception | Critical. |
| Panel issue | Added by a custom panel with issue(). See Extending Lens. |
Issues drive the color of the health strip and the issues chip: amber for warnings, red for critical findings. Notes (severity info) are listed here as Note, are not counted, and do not color the strip.
Slow request sample
The slow request sample needs BoxLang+ or a trial. On Free no sample is taken, so the Slow request issue has no location. See Licensing.
When a request runs longer than thresholds.slowRequestMs, a watchdog thread takes one stack sample of the request thread. It checks every 200 ms, so the sample comes shortly after the limit. The Slow request issue then says where the request was, for example At 3412 ms it was in stall.bxm:5, and links to that file and line. The first BoxLang frame in the stack is used. The sample is taken once per request and shows in the Request detail in the console as "Where it was at".
Turn it off with checks.slowSample: false. It does nothing when thresholds.slowRequestMs is 0.
Security notes
On HTML responses with a status from 200 to 399, Lens checks (setting checks.securityHeaders, on by default):
| Note | Raised when |
|---|---|
| Security headers missing | The response lacks Content-Security-Policy, X-Frame-Options (not needed when the CSP has frame-ancestors), X-Content-Type-Options, or Strict-Transport-Security (HTTPS requests only). |
| Cookie flags missing | A cookie the response sets has no HttpOnly, no Secure (HTTPS only), or no SameSite. |
The note names the missing headers or the cookies. Add them in your web server or Application.bx. JSON and other non-HTML responses are not checked.

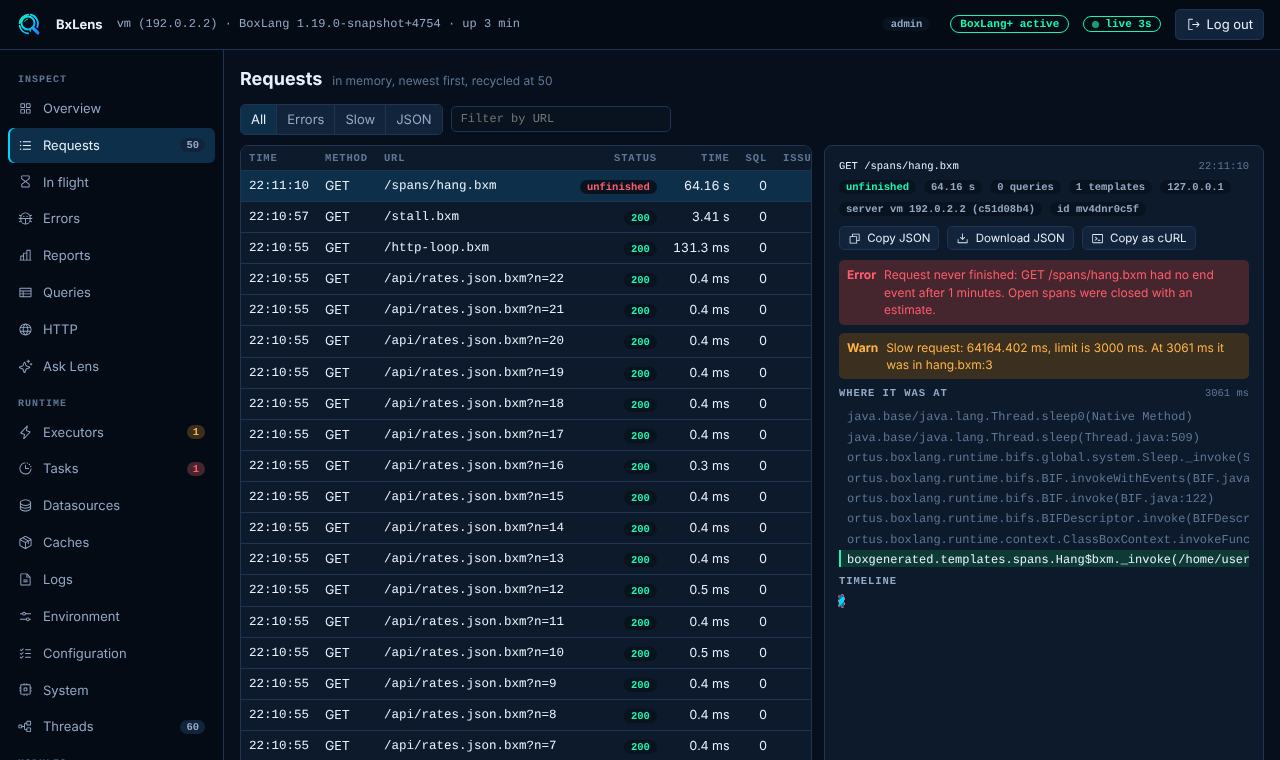

Unfinished requests
A request that never ends (a hung or killed thread, a lost event) is finished by the watchdog after request.maxMinutes. It is kept as unfinished with the critical issue "Request never finished". Its open spans are marked interrupted.
