Console

Console

The console is a standalone page for one server. It shows live requests, executor health, scheduled tasks, datasources, caches, logs, errors, query statistics, JVM numbers and threads. It lets you design the bar and change many settings without a restart. It is off by default.

Turn it on

{
	"modules": {
		"bxLens": {
			"settings": {
				"console": {
					"enabled": true,
					"password": "bxsecret:AbCdEf123...==",
					"access": "local"
				}
			}
		}
	}
}

Restart the runtime. The console needs console.enabled and a password. If the password is empty or cannot be decrypted, Lens logs an error and an allowed caller sees a setup page (HTTP 503) instead of a login.

Make the password

Store the password as an encrypted bxsecret: value. BoxLang decrypts any config value with that prefix at load time, using the runtime's secret seed (BoxLang 1.17 or newer).

boxlang generatesecret "a long random password"
# bxsecret:AbCdEf123...==

Paste the result into console.password. Use the same seed on every machine that shares the config. A plain text password also works but is a bad idea in a file you commit.

Open it

The console lives at:

/~bxlens/index.bxm

This is a public mapping named ~bxlens, the same pattern as /~bxai in bx-ai. /~bxlens/index.bxm always works. /~bxlens/ with a trailing slash is rewritten to it, but on MiniServer that also needs a pass predicate, see The console URL. Every other route is under it, for example /~bxlens/index.bxm/stream.

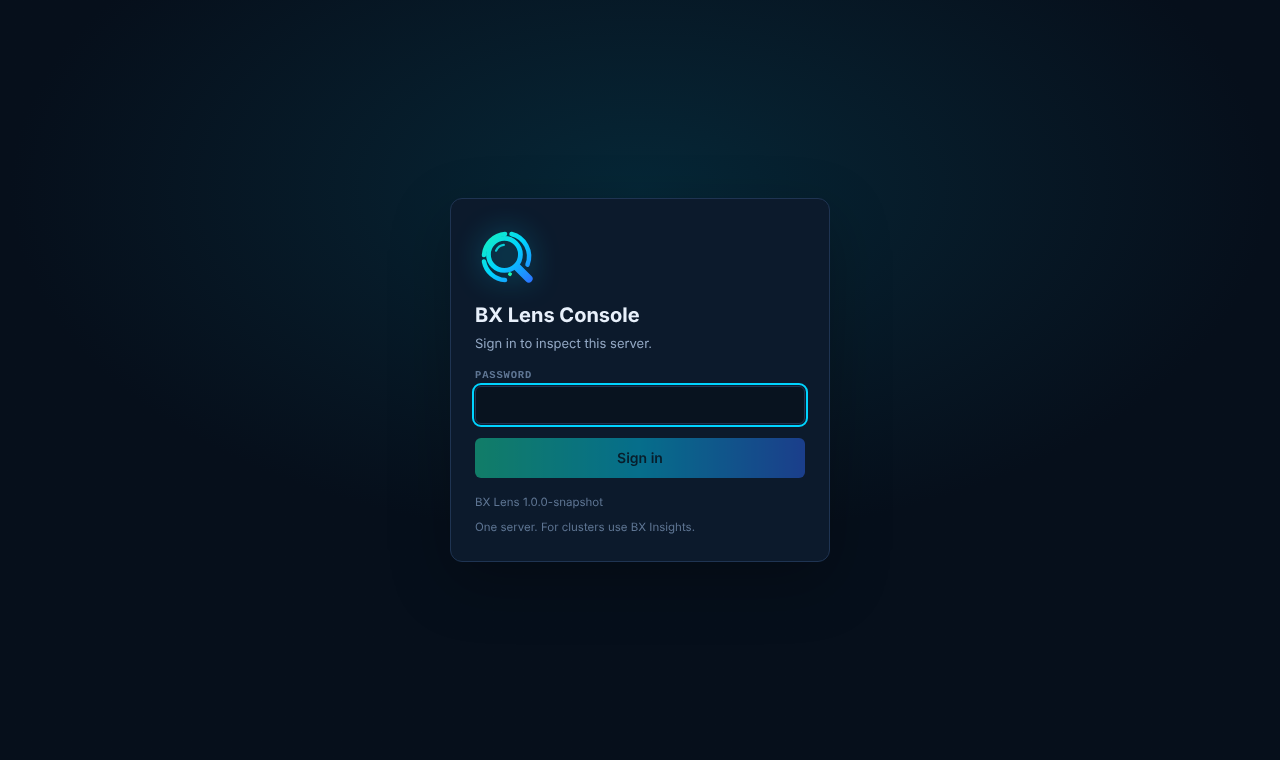

Sign in

There are no user names. The password you type decides the role:

The role shows in the header. See Roles for the full list.

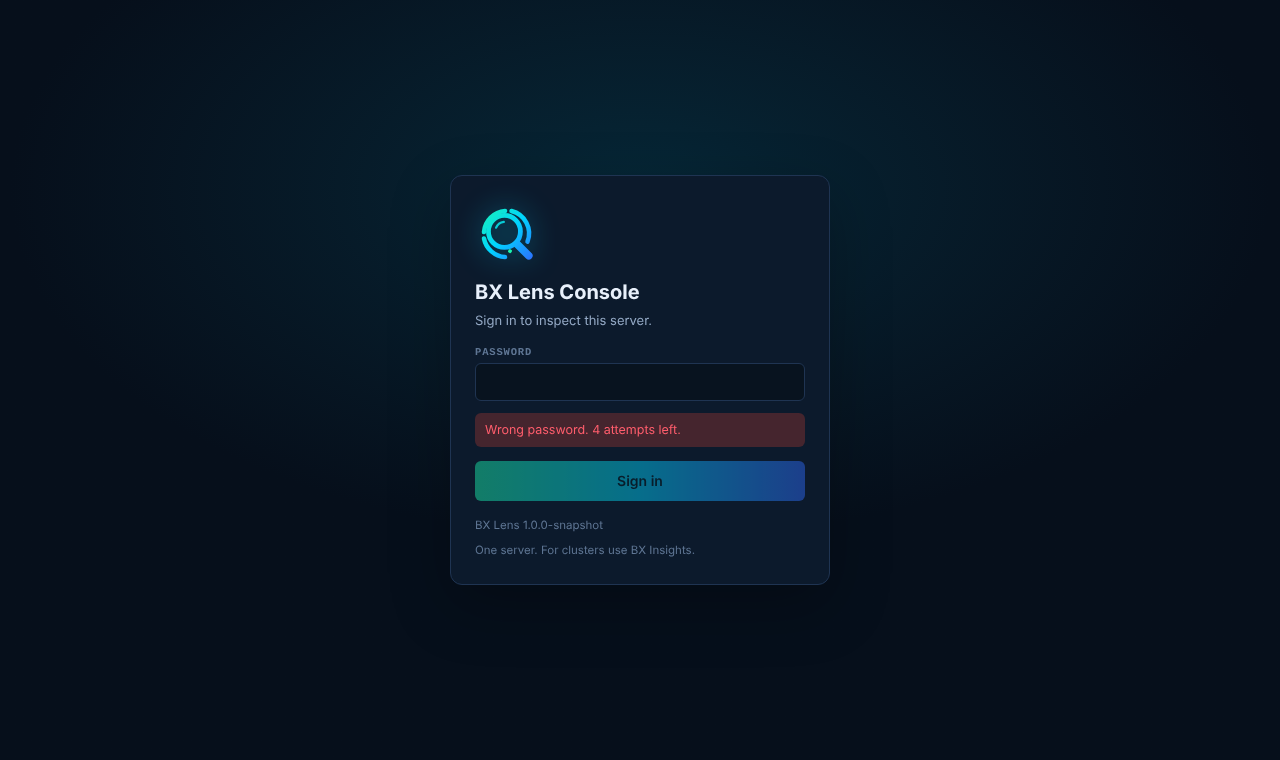

A wrong password says so and counts the attempt. After console.maxLoginAttempts wrong tries the address is locked out for console.lockoutMinutes.

Sessions live in memory. They end after console.sessionMinutes idle, 12 hours after login at the latest, or at a restart.

When someone reaches the console over plain HTTP from a non-loopback address, every page shows a warning banner. Set console.requireHttps to refuse such requests.

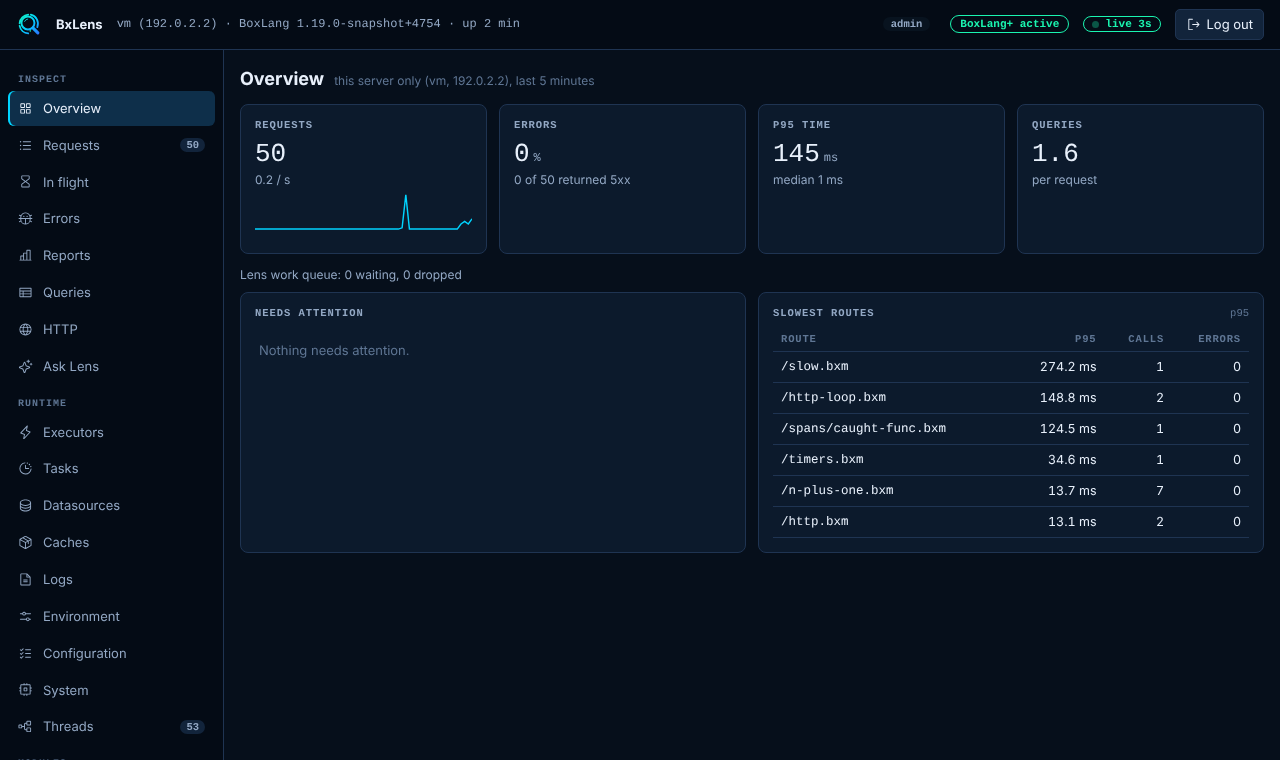

Pages

The menu has four groups: Inspect (what requests, errors, queries and outgoing calls did), Runtime (the live health of this server), Modules (the Modules list and the pages of module integrations, such as ORM) and BxLens (the bar designer and the settings of BxLens itself, which hold the Lensy settings on their Assistant tab). Multi server observability is BoxLang+, and Free shows one server only. With BoxLang+ a server selector in the header switches the pages that read saved data between this server, another server in the same store folder, and all of them.

Hide a page with tabs.hide, or turn its collector off. Settings is always there.

Most of the console is free. The items marked BoxLang+ need a license or trial, and on Free they show a "BoxLang+" note and the server answers 403. See Licensing.

Requests

The list shows time, method, URL, status, duration, SQL count and issue count, newest first. A Server column is added when the history holds requests of more than one server id (for example after the id was changed), and the detail always names the server that handled the request. Filter by All, Errors, Slow or JSON, or by URL text. Pick a row to see the detail: status, timings, issues, the slow request sample if there is one, and a timeline waterfall.

From the detail you can copy the request as JSON, download it as a JSON file, or copy it as a cURL command (redacted headers are left out). Each request has a deep link, /~bxlens/index.bxm#requests/{id}, which the bar's More menu uses. History is an in-memory ring buffer of history.maxRequests (default 50). A request that was recycled shows "That request has been recycled".

The console never lists its own requests.

Live data

One Server-Sent Events stream per browser (GET /~bxlens/index.bxm/stream) pushes the data of the open page once a second: requests, executors, tasks, datasources, in-flight requests, queries, system numbers and new log lines. A newer stream from the same session replaces the older one, and a stream ends after five minutes and the browser reconnects by itself. The header shows live 3s or paused. If the stream is unavailable (no EventSource, or console.maxStreams is reached), the page polls every 3 seconds instead. Threads refresh every 5 seconds while open, because a thread dump briefly pauses the JVM.

Security model

The console is built for a hostile network, within reason.

• Callers outside console.access, access.allowedHosts or access.requireHeader get a plain 404.
• Strict Content-Security-Policy and no request to any other site. Alpine.js and the Phosphor icons are vendored and fonts are system fonts, so it works air gapped.
• HttpOnly, SameSite=Strict session cookie (Secure on HTTPS), a CSRF header on every state change, and a custom header on login.
• Per-address lockout, and two roles: a viewer can look but not change or download.
• Optional HTTPS requirement, and an audit log of logins and changes.

Read the full list in Security, and use Running Lens in production before you expose it.

What the console is not

It is for ONE server. It keeps the last history.maxRequests requests in memory (25 on Free, see Licensing). Errors, reports and query statistics are in memory too. With BoxLang+ or a trial, errors and reports are also saved to disk so they survive restarts. Apart from that, Lens writes only the saved bar layout, the saved settings changes and the audit log. For clusters, history over time and alerting, use the separate BX Insights product. See Roadmap.
